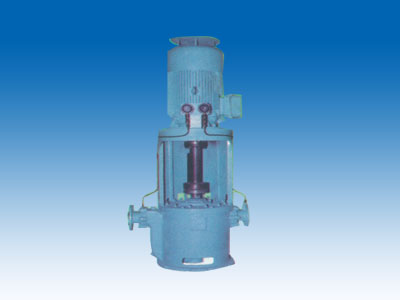

CLZⅡSeries Marine Vertical Self-Priming Centrifugal Pump

CLZⅡSeries Marine Vertical Self-Priming Centrifugal Pump

Introduction:

CLZ II series marine vertical self-priming centrifugal pumps have advantage of simple structure, light weight, excellent self-priming,easy installation, use friendly and so on. The key point techology was won national patent title. This series pump can be used to bilge, ballast, fire, cooling and used in other complete. The transfer water should not exceed 80℃.Inlet/outlet flange are come up to GB9113.3（PN=1.6MPa）and GB2505 (PN=1.6MPa） standard.

The explanation for the pump type

Table1

Type

voltage 380V Frequency 50Hz

Main technical Performance parameters

Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW Matched power kW Pump weight  Kg
40CLZⅡ-2 5 60 2900 3.5 4.3 5.5
40CLZⅡ-2A 4 54 3.5 3.1 5.5
40CLZⅡ-2B 4 38 3.5 2.2 4
50CLZⅡ-4.5 12.5 32 4 2.7 4
50CLZⅡ-4.5A 11.2 26 4 1.93 3
50CLZⅡ-4.5B 10 28 4 1.86 3
50CLZⅡ-4.5C 10 20.5 4.5 1.33 2.2
50CLZⅡ-6 20 32 4 3.6 5.5
50CLZⅡ-6A 17 28 4 2.64 4
50CLZⅡ-9 27 14.5 4 1.87 3
50CLZⅡ-9A 21 12 4 1.25 2.2
50CLZⅡ-7 12.5 20 4 1.33 2.2
50CLZⅡ-7A 10 17 4 0.91 1.5
50CLZⅡ-7B 10 14 4 0.76 1.5
50CLZⅡ-3 12.5 50 4 4.9 7.5
50CLZⅡ-3A 10 45 4 3.5 5.5
50CLZⅡ-3B 10 32 4 2.5 4
50CLZⅡ-4 20 50 4 6.5 7.5
50CLZⅡ-4A 17 46 4 5.1 7.5
50CLZⅡ-4B 17 36 4 4 5.5
65CLZⅡ-9 25 20 4 2.3 3
65CLZⅡ-9A 21 17 4 1.62 2.2
65CLZⅡ-6 25 32 4 4.2 5.5
65CLZⅡ-6A 23 27.1 4 3.3 5.5
65CLZⅡ-6B 21 28 4 3.1 4
65CLZⅡ-5 25 45 4 6.52 7.5
Continued table
Type

voltage 380V Frequency 50Hz

Main technical Performance parameters

Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW Matched power kW Pump weight  Kg
100CLZⅡ-17A 72 18 2900 4.5 5.8 7.5
100CLZⅡ-12 80 32 4.8 10.75 15
100CLZⅡ-12A 72 28 4.8 8.6 11
100CLZⅡ-8 80 50 4.8 17.9 22
100CLZⅡ-8A 72 46 4.8 15.3 18.5
100CLZⅡ-6 80 80 5 32.9 37
100CLZⅡ-6A 72 75 5 28.8 37
100CLZⅡ-18.5 100 20 5 8.25 11
100CLZⅡ-18.5A 95 18 5 7.3 11
100CLZⅡ-13 100 32 5 12.5 18.5
100CLZⅡ-13A 95 28 5 10.7 15
100CLZⅡ-9 100 50 5 22 30
100CLZⅡ-9A 95 45 5 19.4 30
100CLZⅡ-6.5 100 80 5 36.3 45
100CLZⅡ-6.5A 95 75 5 33.44 45
100CLZⅡ-5 100 120 5 65.33 75
100CLZⅡ-5A 95 110 55 58.06 75
100CLZⅡ-5B 90 97 5 48.5 55
125CLZⅡ-5 120 120 5 67.6 90
125CLZⅡ-5A 114 108 5 57.8 75
125CLZⅡ-5B 108 97 5 50 75
125CLZⅡ-23 160 20 5.2 14.1 18.5
125CLZⅡ-16.5 160 32 5.2 21.1 30
125CLZⅡ-16.5A 150 28 5.2 17.9 22
125CLZⅡ-12 160 50 6 30.7 37
125CLZⅡ-12A 150 46 6 26.5 30
125CLZⅡ-8 160 80 6 58.1 75
125CLZⅡ-8A 150 75 6 51 75
125CLZⅡ-8B 150 68 6 47.1 55
125CLZⅡ-13 200 50 6 38.34 45
Continued table
Type

voltage 380V Frequency 50Hz

Main technical Performance parameters

Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW Matched power kW Pump weight  Kg
125CLZⅡ-13A 185 45 6 31.9 37
125CLZⅡ-9 200 80 6 70.3 90
125CLZⅡ-9A 180 72 6 57 75
125CLZⅡ-7 200 125 6 109.77 132
125CLZⅡ-7A 190 112.8 6 94.1 110
125CLZⅡ-7B 180.5 101.8 6 82 110
150CLZⅡ-10 265 86 5.5 100.1 132
150CLZⅡ-10A 251 77 5.5 84.86 110
200CLZⅡ-11.5 300 32 5 43.6 55
200CLZⅡ-11.5A 282 28.3 5 36.8 45
200CLZⅡ-11.5B 264 24.8 5 30.73 37
200CLZⅡ-24.5 450 15 6 29.2 37
200CLZⅡ-24.5A 418 13 6 23.86 30
200CLZⅡ-10 400 45 5.2 75.4 90
200CLZⅡ-10A 380 41 5.2 66.27 90
200CLZⅡ-10B 340 32.5 5.2 47 55
250CLZⅡ-16 500 28 5.5 63.5 75
250CLZⅡ-16A 475 25.3 5.5 55.45 75
Table2
Type

voltage 440V Frequency 60Hz

Main technical Performance parameters

Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW Matched power kW Pump weight  Kg
40CLZⅡ1-2 6 87.4 3500 4 7.93 11
40CLZⅡ1-2A 4.8 77.7 4 5.64 7.5
40CLZⅡ1-2B 4.8 54.7 4 3.97 5.5
50CLZⅡ1-4.5 15 46 4.4 4.7 5.5
50CLZⅡ1-4.5A 13.4 37.4 4.4 3.41 5.5
50CLZⅡ1-4.5B 12 40.3 4.4 3.3 4
50CLZⅡ1-4.5C 12 29.5 4.4 2.41 3
50CLZⅡ1-6 24.1 46.6 4.4 6.24 7.5
50CLZⅡ1-6A 20.4 40.3 4.4 4.57 5.5
50CLZⅡ1-9 32.6 21.1 4.4 3.29 5.5
50CLZⅡ1-9A 25.2 17.3 4.4 2.16 3
50CLZⅡ1-7 15 29.1 4.4 2.33 4
50CLZⅡ1-7A 12 24.5 4.4 1.57 2.2
50CLZⅡ1-7B 12 20.1 4.4 1.31 2.2
50CLZⅡ1-3 15 72 4.4 8.4 11
50CLZⅡ1-3A 12 64.8 4.4 6.1 7.5
50CLZⅡ1-3B 12 46 4.4 4.3 5.5
50CLZⅡ1-4 24 72 4.4 11.2 15
50CLZⅡ1-4A 20.4 66.2 4.4 8.8 11
50CLZⅡ1-4B 20.4 51.8 4.4 6.85 11
65CLZⅡ1-9 30.2 29.1 4.4 3.9 5.5
65CLZⅡ1-9A 25.2 24.5 4.4 2.8 4
65CLZⅡ1-6 30.2 46.6 4.4 7.5 11
65CLZⅡ1-6A 27.5 39 4.5 5.72 7.5
65CLZⅡ1-6B 25.2 40.3 4.5 5.42 7.5
65CLZⅡ1-5 30.2 65.6 4.5 11.47 15
65CLZⅡ1-5A 27 52.5 4.5 8.2 11
65CLZⅡ1-4.5 30.2 87.4 4.4 16.3 22
65CLZⅡ1-4.5A 26.4 77.7 4.4 12.7 15
65CLZⅡ1-4.5B 24 54.7 4.6 8.12 11
Table2
Type

voltage 440V Frequency 60Hz

Main technical Performance parameters

Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW Matched power kW Pump weight  Kg
65CLZⅡ1-3 30 115 3500 4.9 26.8 30
65CLZⅡ1-3A 26.4 108 4.9 22.2 30
65CLZⅡ1-3B 24 73.4 4.9 13.7 18.5
65CLZⅡ1-8 42 46 5.5 9.6 11
65CLZⅡ1-8A 38.4 40.3 5.5 7.66 11
65CLZⅡ1-5.5 42 70 4.9 15.1 18.5
65CLZⅡ1-5.5A 27.3 56 4.9 8 11
80CLZⅡ1-13 54.3 30.6 5.4 7.8 11
80CLZⅡ1-13A 48 25.9 5.4 5.94 7.5
80CLZⅡ1-9 60 46 5.5 12.5 15
80CLZⅡ1-9A 54 37 5.5 9.4 11
80CLZⅡ1-6 60.3 72.9 5.6 20.8 30
80CLZⅡ1-6A 54 69 5.6 18.1 22
80CLZⅡ1-6B 54 57.6 5.6 15.1 18.5
80CLZⅡ1-7.5 72.4 72.9 4.9 25.2 30
80CLZⅡ1-7.5A 66 67.7 4.9 21.7 30
80CLZⅡ1-5.5 54.3 90.3 4.9 25.2 30
80CLZⅡ1-5.5A 48 83.5 4.9 20.6 30
80CLZⅡ1-5.5B 48 72 4.9 17.75 22
80CLZⅡ1-5 72.4 116.6 5.2 43.1 55
80CLZⅡ1-5A 68.4 103.7 5.2 35.8 45
80CLZⅡ1-5B 64.8 93.4 5.2 31.1 37
80CLZⅡ1-3 60.3 174.8 4.9 63.79 75
80CLZⅡ1-3A 54 158 4.9 51.6 75
80CLZⅡ1-3B 51 125.2 4.9 38.63 45
100CLZⅡ1-17 96.5 29 4.5 11.9 15
100CLZⅡ1-17A 86.4 25.9 4.5 9.83 15
100CLZⅡ1-12 96.5 46.6 4.8 18.8 22
100CLZⅡ1-12A 86 40.3 4.8 14.74 18.5
100CLZⅡ1-8 96.6 72.9 5.2 32.5 37
Table2
Type

voltage 440V Frequency 60Hz

Main technical Performance parameters

Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW Matched power kW Pump weight  Kg
100CLZⅡ1-8A 86 66 3500 5.2 26.64 37
100CLZⅡ1-6 96.5 116.5 5 57.74 75
100CLZⅡ1-6A 86 108 5 49.58 55
100CLZⅡ1-18.5 120.7 29 5 14.44 18.5
100CLZⅡ1-18.5A 114 25.9 5 12.56 15
100CLZⅡ1-13 120.7 46.6 5 21.87 30
100CLZⅡ1-13A 114 40 5 18.25 22
100CLZⅡ1-9 120.7 72.9 5.7 38.6 45
100CLZⅡ1-9A 114 64.8 5.7 33.52 37
100CLZⅡ1-6.5 120.7 116.5 5 63.8 75
100CLZⅡ1-6.5A 114 108 5 57.79 75
100CLZⅡ1-5 120 175 5 114.3 132
100CLZⅡ1-5A 114 158 5 98.1 110
100CLZⅡ1-5B 108 139.7 5 83.8 110
125CLZⅡ1-5 144.8 174.5 5.5 118.6 160
125CLZⅡ1-5A 136.8 155.5 5.5 99.84 132
125CLZⅡ1-5B 129.6 139.6 5.5 86.4 110
125CLZⅡ1-23 193 29 5.2 24.57 30
125CLZⅡ1-16.5 193 46.6 5.2 37.1 45
125CLZⅡ1-16.5A 180 40 5.2 30.63 37
125CLZⅡ1-12 193 72.8 6 53.87 75
125CLZⅡ1-12A 180 66 6 46.2 55
125CLZⅡ1-8 193.1 116.6 6.2 102 132
125CLZⅡ1-8A 180 108 6.2 88.2 110
125CLZⅡ1-8B 180 98 6.2 81.39 110
125CLZⅡ1-13 241.4 72.8 6 67.38 75
125CLZⅡ1-13A 222 64.8 6 55.16 75
125CLZⅡ1-9 241.4 116.6 6.4 125.6 160
125CLZⅡ1-9A 216 103.7 6.4 100 132
125CLZⅡ1-7 241 182 6 192.6 250
Continued table
Type

voltage 440V Frequency 60Hz

Main technical Performance parameters

Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW Matched power kW Pump weight  Kg
125CLZⅡ1-7A 228 162 3500 6 162.17 200
125CLZⅡ1-7B 216 146.6 6 141.3 160
150CLZⅡ1-10 319.8 125.5 5.5 176.2 200
150CLZⅡ1-10A 301 110.8 5.5 146.43 200
200CLZⅡ1-11.5 362 46.7 1750 5 76.7 90
200CLZⅡ1-11.5A 338 40.7 5 63.47 75
200CLZⅡ1-11.5B 316.8 35.7 5 53.1 75
200CLZⅡ1-24.5 543 21.9 6 51.38 75
200CLZⅡ1-24.5A 501 18.7 6 41.13 55
200CLZⅡ1-10 482 65 5.2 131.2 160
200CLZⅡ1-10A 456 59 5.2 114.44 132
200CLZⅡ1-10B 408 46.8 5.2 81.22 110
250CLZⅡ1-16 603 40.9 5.5 111.9 132
250CLZⅡ1-16A 570 36.4 5.5 95.73 110
